NTN6830/N/NR軸承
- 軸承型號:6830/N/NR
- 系列:深溝球軸承3
- 品牌:NTN
NTN 6830/N/NR軸承,深溝球軸承3,軸承內圈,外圈更多詳細資料您可致電我司,此軸承型號本公司有現貨,獲取NTN 6830/N/NR配合安裝尺寸,基本尺寸,滾子粒數,6830/N/NR價格,外形尺寸,錐度,軸承的圖紙、樣品、價格或者替換產品等!我們是NTN軸承最佳代理商,所售產品均為原裝正品,請您放心購買! 訂購電話:021-36539288 ,021-36539299
NTN6830/N/NR軸承參數
-
系列深溝球軸承3
-
型號6830/N/NR
-
Boundarydimensions mm
- rNS
- d
- D
- B
- rsmin1
- min.
- 150
- 190
- 20
- 1.1
- 0.5
-
Basic load ratings
- dynamic
- static
- dynamic
- static
- kN
- kgf
- Cr
- Cor
- Cr
- Cor
- 47.5
- 55.0
- 4,850
- 5,600
-
Limiting speeds
- rpm
- grease open type
- oil open type
- ZZ LLB
- Z LB
- LLU
- 3,100
- 3,700
- ―
-
Bearing numbers
- open type
- sealed type
- contact type
- snap2 groovering
- snap2 ring
- 6830
- ―
- ―
- N
- NR
-
Snap ring groove dimensions
- mm
- D1
- a
- b
- r0
- max
- max
- min
- max
- 186.8
- 3.3
- 1.9
- 0.6
-
snap ring dimensions
- mm
- D2
- f
- max
- max
- 196.5
- 1.7
-
Abutment and fillet dimensions
mm
- da
- Da
- Dx
- CY
- Cz
- ras
- rNas
- min
- max3
- max
- .approx.
- max
- min
- min
- max
- 156.5
- ―
- 183.5
- 198
- 4.7
- 1.7
- 1
- 0.5
-
Mass4
- kg
- .approx.
- 1.16

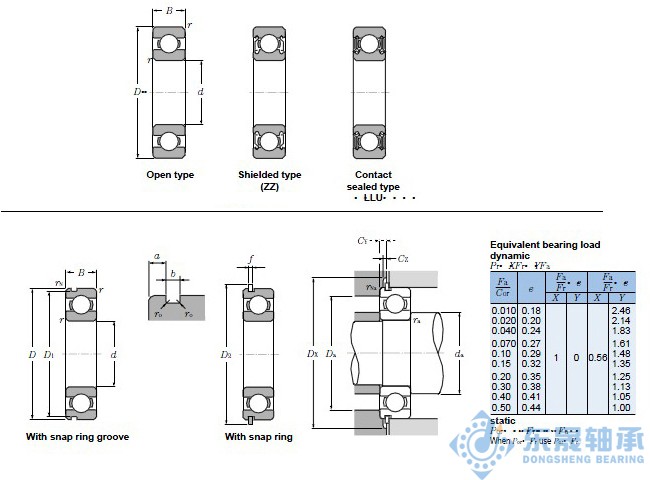

- 深溝球軸承3系列 6830/N/NR圖片
