IKOTLA5520Z/TLAM5520/IRT5020-1軸承
- 軸承型號：TLA5520Z/TLAM5520/IRT5020-1
- 系列：沖壓滾針軸承3
- 品牌：IKO
IKO TLA5520Z/TLAM5520/IRT5020-1軸承,沖壓滾針軸承3，軸承內圈,外圈更多詳細資料您可致電我司，此軸承型號本公司有現貨，獲取IKO TLA5520Z/TLAM5520/IRT5020-1配合安裝尺寸,基本尺寸,滾子粒數,TLA5520Z/TLAM5520/IRT5020-1價格,外形尺寸,錐度,軸承的圖紙、樣品、價格或者替換產品等！我們是IKO軸承最佳代理商，所售產品均為原裝正品，請您放心購買！ 訂購電話：021-36539288 ,021-36539299
IKOTLA5520Z/TLAM5520/IRT5020-1軸承參數
-
系列沖壓滾針軸承3
-
型號TLA5520Z/TLAM5520/IRT5020-1
-
Boundarydimensions mm
- Fw
- D
- C
- t1
- Max.
- 55
- 63
- 20
- 2.8
-
Identification number
- Standard
- Mass (Ref. )g
- Closedend
- Mass (Ref. )g
- Standard
- Mass (Ref. )g
- Closed end
- Mass (Ref. )g
- Greaseretained
- Mass (Ref. )g
- ─
- ─
- ─
- ─
- TLA 5520 Z
- 75
- TLAM 5520
- 98.5
- ─
- ─
-
Standard mountingdimensions mm
- Shaft dia.
- Housing bore dia.
- h6
- J7
- N7
- Max
- Min
- Max
- Min
- Max
- Min
- 55.000
- 54.981
- ─
- ─
- 62.991
- 62.961
-
Basic dynamic loadrating
- C
- N
- 29800
-
Basic static loadrating
- C0
- N
- 69400
-
Allowable rotational
- speed( 1)
- rpm
- 5 500
-
Assembled inner ring
- IRT 5020-1

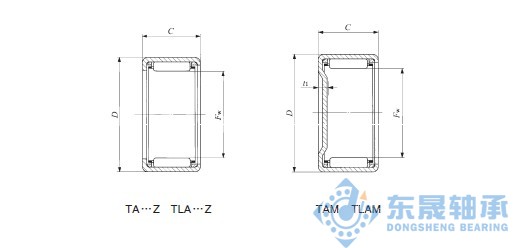

- 沖壓滾針軸承3系列 TLA5520Z/TLAM5520/IRT5020-1圖片
