IKOTA2230Z/TAM2230/IRT1730-2軸承
- 軸承型號：TA2230Z/TAM2230/IRT1730-2
- 系列：沖壓滾針軸承2
- 品牌：IKO
IKO TA2230Z/TAM2230/IRT1730-2軸承,沖壓滾針軸承2，軸承內圈,外圈更多詳細資料您可致電我司，此軸承型號本公司有現貨，獲取IKO TA2230Z/TAM2230/IRT1730-2代號,基本尺寸,安裝尺寸,基本額定載荷,精度等級,裝配,軸承的圖紙、樣品、價格或者替換產品等！我們是IKO軸承最佳代理商，所售產品均為原裝正品，請您放心購買！ 訂購電話：021-36539288 ,021-36539299
IKOTA2230Z/TAM2230/IRT1730-2軸承參數
-
系列沖壓滾針軸承2
-
型號TA2230Z/TAM2230/IRT1730-2
-
Boundarydimensions mm
- Fw
- D
- C
- t1,t2
- Max.
- 22
- 29
- 30
- 1.3
-
Identification number
- Standard
- Mass (Ref. )g
- Closedend
- Mass (Ref. )g
- Standard
- Mass (Ref. )g
- Closed end
- Mass (Ref. )g
- Greaseretained
- Mass (Ref. )g
- TA 2230 Z
- 42.5
- TAM 2230
- 45.5
- ─
- ─
- ─
- ─
- ─
- ─
-
Standard mountingdimensions mm
- Shaft dia.
- Housing bore dia.
- h6
- J7
- N7
- Max
- Min
- Max
- Min
- Max
- Min
- 22.000
- 28.987
- 29.012
- 28.991
- ─
- ─
-
Basic dynamic loadrating
- C
- N
- 23800
-
Basic static loadrating
- C0
- N
- 43700
-
Allowable rotational
- speed( 1)
- rpm
- 18000
-
Assembled inner ring
- IRT 1730-2

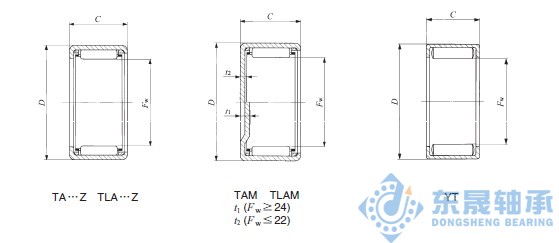

- 沖壓滾針軸承2系列 TA2230Z/TAM2230/IRT1730-2圖片
