IKONA4904UU/NA4904U/LRTZ202518軸承
- 軸承型號：NA4904UU/NA4904U/LRTZ202518
- 系列：滾針軸承9
- 品牌：IKO
IKO NA4904UU/NA4904U/LRTZ202518軸承,滾針軸承9，軸承內圈,外圈更多詳細資料您可致電我司，此軸承型號本公司有現貨，獲取IKO NA4904UU/NA4904U/LRTZ202518代號,基本尺寸,安裝尺寸,基本額定載荷,精度等級,裝配,軸承的圖紙、樣品、價格或者替換產品等！我們是IKO軸承最佳代理商，所售產品均為原裝正品，請您放心購買！ 訂購電話：021-36539288 ,021-36539299
IKONA4904UU/NA4904U/LRTZ202518軸承參數
-
系列滾針軸承9
-
型號NA4904UU/NA4904U/LRTZ202518
-
Boundary dimensions mm
- d
- D
- B
- C
- r smin(1)
- Fw
- 20
- 37
- 18
- 17
- 0.3
- 25
-
Identification number
- With two seals
- With one seal
- With two seals
- With one seal
- NA 4904UU
- NA 4904U
- ─
- ─
-
Mass (Ref. )g78.5
-
Standard mounting dimensions
- da
- Da
- Min.
- Max.
- Max.
- 22
- 24
- 35
-
Basic dynamic load rating
- C
- N
- 18 000
-
Basic static load rating
- C0
- N
- 20 500
-
Allowable rotational
- speed(2)
- rpm
- 7 500
-
Assembled inner ring
- LRTZ 202518

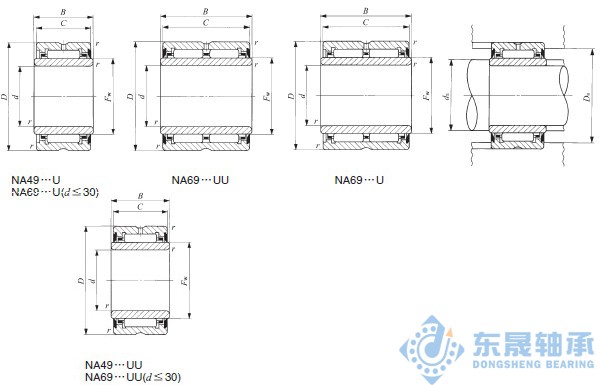

- 滾針軸承9系列 NA4904UU/NA4904U/LRTZ202518圖片
