IKOGBRI568032UU/GBRI568032U/LRBZ566432軸承
- 軸承型號:GBRI568032UU/GBRI568032U/LRBZ566432
- 系列:滾針軸承13
- 品牌:IKO
IKO GBRI568032UU/GBRI568032U/LRBZ566432軸承,滾針軸承13,軸承內圈,外圈更多詳細資料您可致電我司,此軸承型號本公司有現貨,獲取IKO GBRI568032UU/GBRI568032U/LRBZ566432配合安裝尺寸,基本尺寸,滾子粒數,GBRI568032UU/GBRI568032U/LRBZ566432價格,外形尺寸,錐度,軸承的圖紙、樣品、價格或者替換產品等!我們是IKO軸承最佳代理商,所售產品均為原裝正品,請您放心購買! 訂購電話:021-36539288 ,021-36539299
IKOGBRI568032UU/GBRI568032U/LRBZ566432軸承參數
-
系列滾針軸承13
-
型號GBRI568032UU/GBRI568032U/LRBZ566432
-
Boundary dimensions mm
- d
- D
- B
- C
- Fw
- 88.900(3.5)
- 127.000(5)
- 51.050
- 50.800(2)
- 101.600(4)
-
Identification number
- With two seals
- With one seal
- GBRI 568032 UU
- GBRI 568032 U
-
Mass (Ref. )g2 130
-
Standard mounting dimensions
- da
- Da
- (1)
- Min.
- Max.
- Max.
- r as max(1)
- 97
- 99
- 119
- 1.5
-
Basic dynamic load rating
- C
- N
- 182 000
-
Basic static load rating
- C0
- N
- 395 000
-
Allowable rotational
- speed(2)
- rpm
- 800
-
Assembled inner ring
- LRBZ 566432

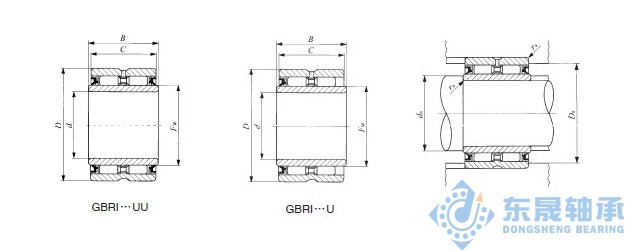

- 滾針軸承13系列 GBRI568032UU/GBRI568032U/LRBZ566432圖片
