IKOCFES12-1BR/CFES12-1B/CFES12-1BUUR/CFES12-1BUU軸承
- 軸承型號:CFES12-1BR/CFES12-1B/CFES12-1BUUR/CFES12-1BUU
- 系列:螺栓型滾輪滾針軸承5
- 品牌:IKO
IKO CFES12-1BR/CFES12-1B/CFES12-1BUUR/CFES12-1BUU軸承,螺栓型滾輪滾針軸承5,軸承內圈,外圈更多詳細資料您可致電我司,此軸承型號本公司有現貨,獲取IKO CFES12-1BR/CFES12-1B/CFES12-1BUUR/CFES12-1BUU配合安裝尺寸,基本尺寸,滾子粒數,CFES12-1BR/CFES12-1B/CFES12-1BUUR/CFES12-1BUU價格,外形尺寸,錐度,軸承的圖紙、樣品、價格或者替換產品等!我們是IKO軸承最佳代理商,所售產品均為原裝正品,請您放心購買! 訂購電話:021-36539288 ,021-36539299
IKOCFES12-1BR/CFES12-1B/CFES12-1BUUR/CFES12-1BUU軸承參數
-
系列螺栓型滾輪滾針軸承5
-
型號CFES12-1BR/CFES12-1B/CFES12-1BUUR/CFES12-1BUU
-
Boundarydimensions
mm- D
- C
- d1
- G
- G1
- B
- B1
- B2
- B3
- C1
- g1
- g2
- H
- r smin(1)
- max
- max
- 32
- 14
- 12
- M12×1.5
- 13
- 15.2
- 40.2
- 25
- 6
- 0.6
- 6
- 3
- 6
- 0.6
-
Identification number
- Shield type
- Sealedtype
- With crowned outer ring
- With cylindrical outer ring
- With crowned outer ring
- With cylindrical outer ring
- CFES 12-1 BR
- CFES 12-1 B
- CFES 12-1 BUUR
- CFES 12-1 BUU
-
Mass (Ref.) g105
-
Eccentricity
- ε
- 0.4
-
Mounting dimension
- f
- Min.mm
- 21
-
Maximum tightening torque
- N-m
- 21.9
-
Basic dynamic load rating
- C
- N
- 7 910
-
Basic static load rating
- C0
- N
- 9 790
-
Maximum allowable load
- N
- 9 790

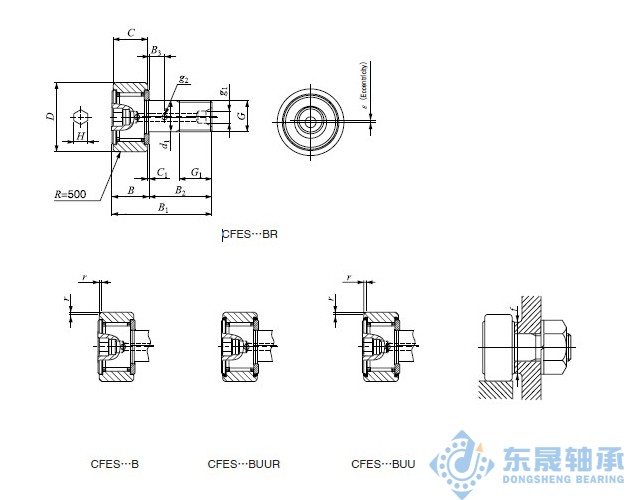

- 螺栓型滾輪滾針軸承5系列 CFES12-1BR/CFES12-1B/CFES12-1BUUR/CFES12-1BUU圖片
