IKOCF8FBR/CF8FBUUR軸承
- 軸承型號:CF8FBR/CF8FBUUR
- 系列:螺栓型滾輪滾針軸承4
- 品牌:IKO
IKO CF8FBR/CF8FBUUR軸承,螺栓型滾輪滾針軸承4,軸承內圈,外圈更多詳細資料您可致電我司,此軸承型號本公司有現貨,獲取IKO CF8FBR/CF8FBUUR配合安裝尺寸,安裝尺寸,重量,額定動負荷,載荷,CF8FBR/CF8FBUUR極限轉速,游隙,軸承的圖紙、樣品、價格或者替換產品等!我們是IKO軸承最佳代理商,所售產品均為原裝正品,請您放心購買! 訂購電話:021-36539288 ,021-36539299
IKOCF8FBR/CF8FBUUR軸承參數
-
系列螺栓型滾輪滾針軸承4
-
型號CF8FBR/CF8FBUUR
-
Boundarydimensions
mm- D
- C
- d1
- G
- G1
- B
- B1
- B2
- B3
- C1
- g1
- g2
- H
- r smin(1)
- 19
- 11
- 8
- M 8×1.25
- 10
- 12.2max
- 32.2max
- 20
- ─
- 0.6
- ─
- ─
- 4
- ─
-
Identification number
- Shield type
- Sealedtype
- With crowned outer ring
- With cylindrical outer ring
- With crowned outer ring
- With cylindrical outer ring
- CF 8 FBR
- ─
- CF 8 FBUUR
- ─
-
Mass (Ref.) g28.5
-
Mounting dimension
- f
- Min.mm
- 13
-
Maximum tightening torque
- N-m
- 6.5
-
Basic dynamic load rating
- C
- N
- 3 400
-
Basic static load rating
- C0
- N
- 3 790
-
Maximum allowable load
- N
- 3 790

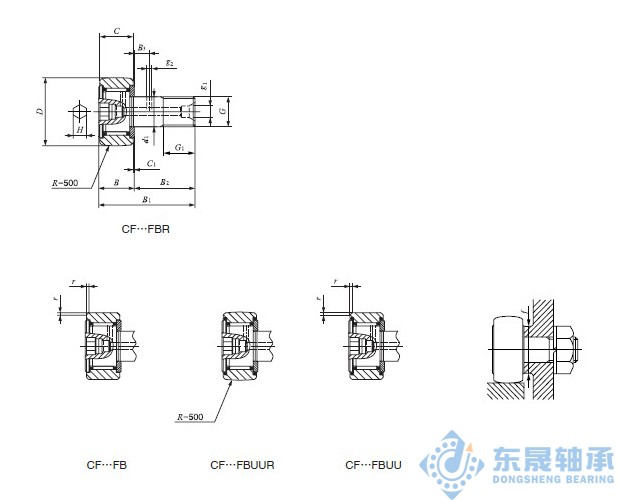

- 螺栓型滾輪滾針軸承4系列 CF8FBR/CF8FBUUR圖片
