IKOCF30VBR/CF30VB/CF30VBUUR/CF30VBUU軸承
- 軸承型號:CF30VBR/CF30VB/CF30VBUUR/CF30VBUU
- 系列:螺栓型滾輪滾針軸承3
- 品牌:IKO
IKO CF30VBR/CF30VB/CF30VBUUR/CF30VBUU軸承,螺栓型滾輪滾針軸承3,軸承內圈,外圈更多詳細資料您可致電我司,此軸承型號本公司有現貨,獲取IKO CF30VBR/CF30VB/CF30VBUUR/CF30VBUU配合安裝尺寸,基本尺寸,滾子粒數,CF30VBR/CF30VB/CF30VBUUR/CF30VBUU價格,外形尺寸,錐度,軸承的圖紙、樣品、價格或者替換產品等!我們是IKO軸承最佳代理商,所售產品均為原裝正品,請您放心購買! 訂購電話:021-36539288 ,021-36539299
IKOCF30VBR/CF30VB/CF30VBUUR/CF30VBUU軸承參數
-
系列螺栓型滾輪滾針軸承3
-
型號CF30VBR/CF30VB/CF30VBUUR/CF30VBUU
-
Boundarydimensions
mm- D
- C
- d1
- G
- G1
- B
- B1
- B2
- B3
- C1
- g1
- g2
- H
- r smin(1)
- max
- max
- 80
- 35
- 30
- M30×1.5
- 32
- 37
- 100
- 63
- 15
- 1
- 8
- 4
- 17
- 1
-
Identification number
- Shield type
- Sealedtype
- With crowned outer ring
- With cylindrical outer ring
- With crowned outer ring
- With cylindrical outer ring
- CF 30 VBR
- CF 30 VB
- CF 30 VBUUR
- CF 30 VBUU
-
Mass (Ref.) g1 870
-
Mounting dimension
- f
- Min.mm
- 49
-
Maximum tightening torque
- N-m
- 438
-
Basic dynamic load rating
- C
- N
- 67 700
-
Basic static load rating
- C0
- N
- 144 000
-
Maximum allowable load
- N
- 85 900

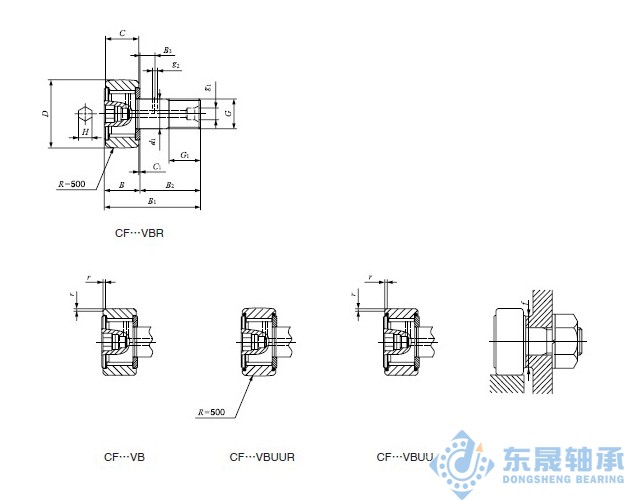

- 螺栓型滾輪滾針軸承3系列 CF30VBR/CF30VB/CF30VBUUR/CF30VBUU圖片
