IKOCF24-1VR/CF24-1V/CF24-1VUUR/CF24-1VUU軸承
- 軸承型號:CF24-1VR/CF24-1V/CF24-1VUUR/CF24-1VUU
- 系列:螺栓型滾輪滾針軸承3
- 品牌:IKO
IKO CF24-1VR/CF24-1V/CF24-1VUUR/CF24-1VUU軸承,螺栓型滾輪滾針軸承3,軸承內圈,外圈更多詳細資料您可致電我司,此軸承型號本公司有現貨,獲取IKO CF24-1VR/CF24-1V/CF24-1VUUR/CF24-1VUU配合安裝尺寸,安裝尺寸,重量,額定動負荷,載荷,CF24-1VR/CF24-1V/CF24-1VUUR/CF24-1VUU極限轉速,游隙,軸承的圖紙、樣品、價格或者替換產品等!我們是IKO軸承最佳代理商,所售產品均為原裝正品,請您放心購買! 訂購電話:021-36539288 ,021-36539299
IKOCF24-1VR/CF24-1V/CF24-1VUUR/CF24-1VUU軸承參數
-
系列螺栓型滾輪滾針軸承3
-
型號CF24-1VR/CF24-1V/CF24-1VUUR/CF24-1VUU
-
Boundarydimensions
mm- D
- C
- d1
- G
- G1
- B
- B1
- B2
- B3
- C1
- g1
- g2
- H
- r smin(1)
- max
- max
- 72
- 29
- 24
- M24×1.5
- 25
- 30.6
- 80.1
- 49.5
- 11
- 0.8
- 8
- 4
- 名稱a5
- 1
-
Identification number
- Shield type
- Sealedtype
- With crowned outer ring
- With cylindrical outer ring
- With crowned outer ring
- With cylindrical outer ring
- CF 24-1 VR
- CF 24-1 V
- CF 24-1 VUUR
- CF 24-1 VUU
-
Mass (Ref.) g1 140
-
Mounting dimension
- f
- Min.mm
- 40
-
Maximum tightening torque
- N-m
- 215
-
Basic dynamic load rating
- C
- N
- 46 600
-
Basic static load rating
- C0
- N
- 92 000
-
Maximum allowable load
- N
- 52 000

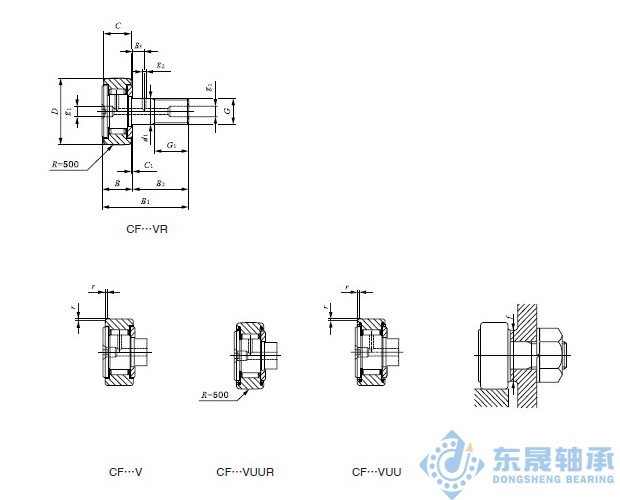

- 螺栓型滾輪滾針軸承3系列 CF24-1VR/CF24-1V/CF24-1VUUR/CF24-1VUU圖片
