IKOCF18BR/CF18B/CF18BUUR/CF18BUU軸承
- 軸承型號：CF18BR/CF18B/CF18BUUR/CF18BUU
- 系列：螺栓型滾輪滾針軸承2
- 品牌：IKO
IKO CF18BR/CF18B/CF18BUUR/CF18BUU軸承,螺栓型滾輪滾針軸承2，軸承內圈,外圈更多詳細資料您可致電我司，此軸承型號本公司有現貨，獲取IKO CF18BR/CF18B/CF18BUUR/CF18BUU配合安裝尺寸,基本尺寸,滾子粒數,CF18BR/CF18B/CF18BUUR/CF18BUU價格,外形尺寸,錐度,軸承的圖紙、樣品、價格或者替換產品等！我們是IKO軸承最佳代理商，所售產品均為原裝正品，請您放心購買！ 訂購電話：021-36539288 ,021-36539299
IKOCF18BR/CF18B/CF18BUUR/CF18BUU軸承參數
-
系列螺栓型滾輪滾針軸承2
-
型號CF18BR/CF18B/CF18BUUR/CF18BUU
-
Boundarydimensions
mm- D
- C
- d1
- G
- G1
- B
- B1
- B2
- B3
- C1
- g1
- g2
- H
- r smin(1)
- 40
- 20
- 18
- M18×1.5
- 19
- 21.6max
- 58.1max
- 36.5
- 8
- 0.8
- 6
- 3
- 8
- 1
-
Identification number
- Shield type
- Sealedtype
- With crowned outer ring
- With cylindrical outer ring
- With crowned outer ring
- With cylindrical outer ring
- CF 18 BR
- CF 18 B
- CF 18 BUUR
- CF 18 BUU
-
Mass (Ref.) g250
-
Mounting dimension
- f
- Min.mm
- 29
-
Maximum tightening torque
- N-m
- 86.2
-
Basic dynamic load rating
- C
- N
- 14 800
-
Basic static load rating
- C0
- N
- 25 200
-
Maximum allowable load
- N
- 25 200

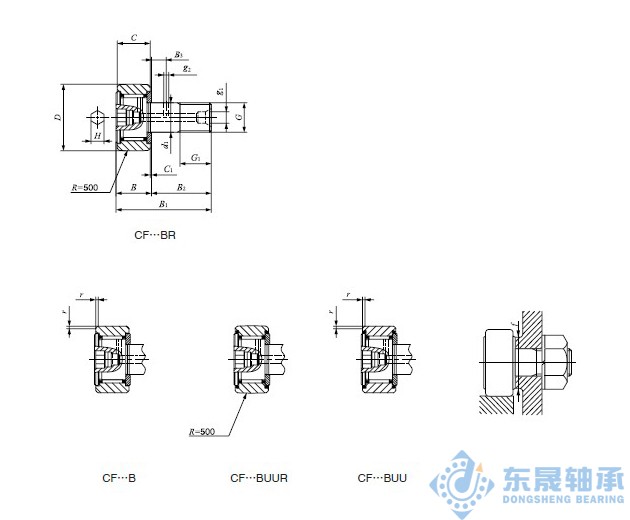

- 螺栓型滾輪滾針軸承2系列 CF18BR/CF18B/CF18BUUR/CF18BUU圖片
